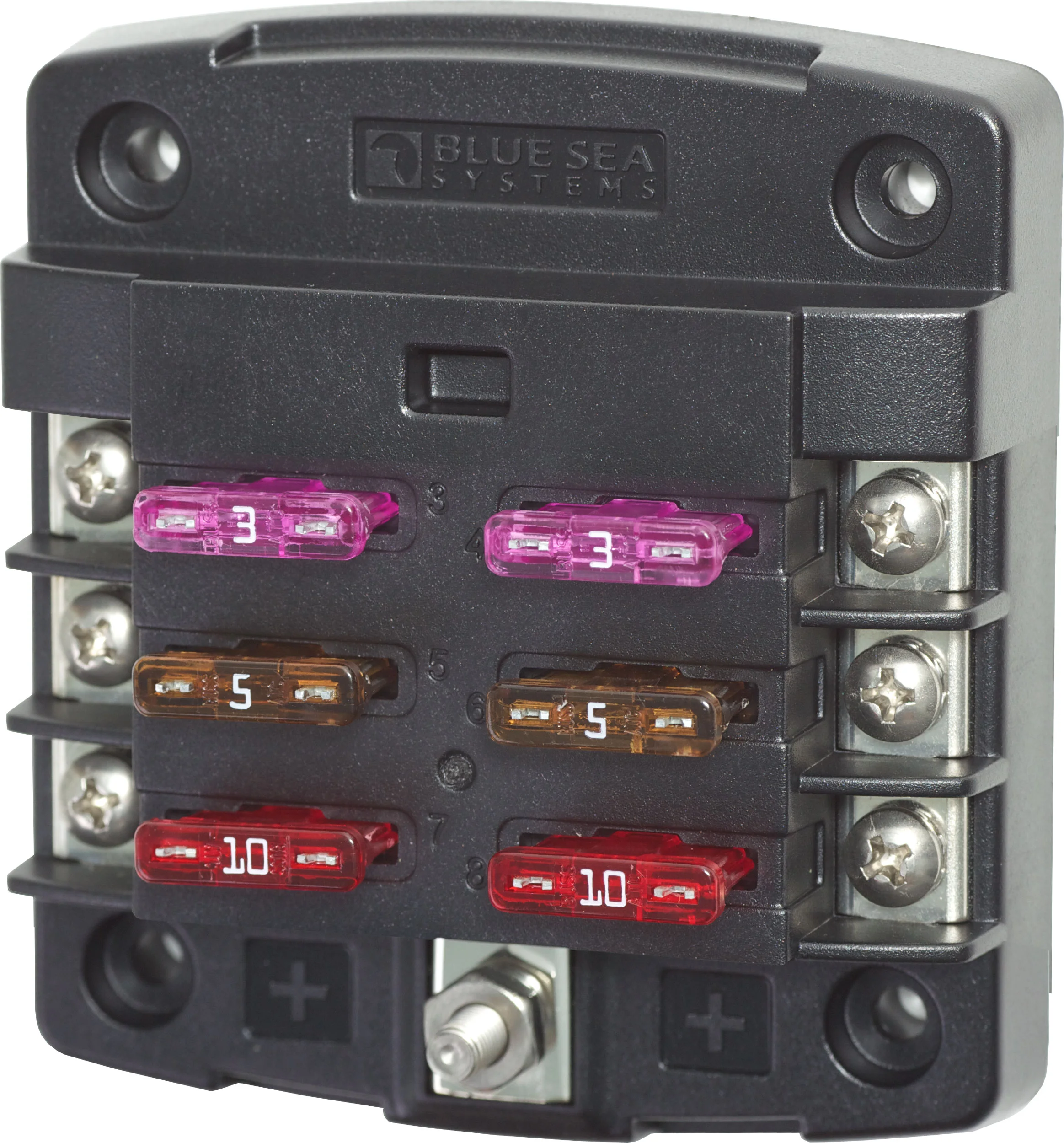

Consolidates branch circuits and in-line fuses

• Positive distribution bus with #10-32 stud

• Can be used for 24-hour circuits

• Models available with or without a cover

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Accepts ATO® and ATC® fast acting blade fuses

• Fuses sold separately

Circuits: 6

Maximum Amperage: 100A per block / 30A per circuit

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4)

Positive Bus: #10 - 32 Stud

Recommended Torque: 24 in-lb (2.71 N·m)

Screw Terminal Type: #8 - 32 Screws with captive star lock washer

Weight: 0.35

Wiring Schematic
