CUSTOM MARINE SOLAR CABLE w/ MC4 Connectors

12 Gauge - 2 Conductor

Solar Cable are constructed with a safety duplex cable - Red and Yellow Marine Grade primary conductors (correctly color-coded to the updated ABYC standards) in a white common jacket that is made for easy removal while providing the highest abrasion resistance.

Cables exceed UL 1426 standards and are made from the highest quality ultra-flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

It is recommended to use Nylon / Tinned Copper Compression Connectors when splicing cabling with approved termination tool and adhesive lined UL heat-shrink

Solar Cable Specifications / Ratings:

600 volts

105 deg C dry and 75 deg C wet

Flexible even in extreme cold (-40 deg F/C)

Red Wire - Positive(+) / Yellow Wire - Negative (-)

Resists salt water, battery acid, oil, gasoline, heat, abrasion & UV Radiation

White Jacket - Available in 10/2 – 12/2 – 14/2 (gauge / conductors)

Thick Wall - Adhesive Lined Heat Shrink Over Each Conductor to Connector

Thick Wall – Adhesive Lined Heat Shrink Over Conductors / Jacket

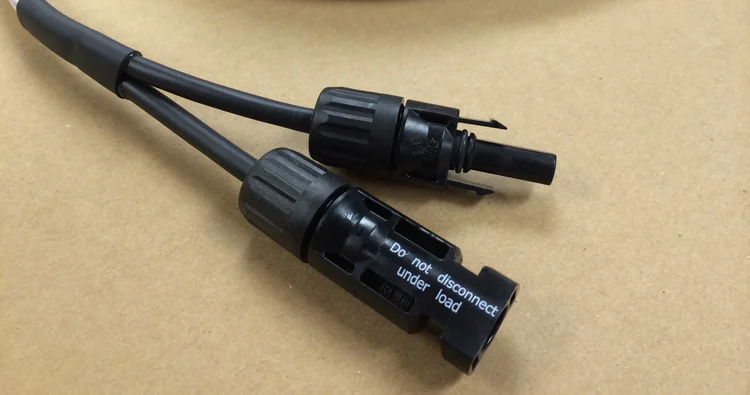

MC4 – Genuine Multi-Contact Solar Connectors (German Made)

MC4 Connectors on one end - bare wire on other end.

Mated Connectors from Solar Output to Charge Controller

Cable, Heat Shrink & MC4’s made and assembled 100% in USA

If you need MC4 Connectors on Both Ends (extension cable) Please add and MC4-Connector to your cart from the drop down list.

Custom length cables are available - if you don't see the size you need, phone or email us!
